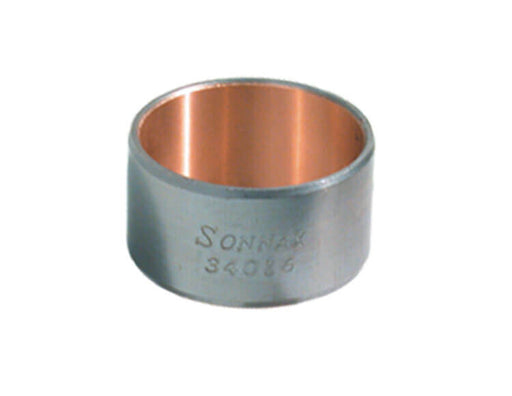

Sonnax 34016-W(1PC) 4L80E 4L85E Transmission Stator Support Bushing Front WIDE

Sonnax 34016-W(1PC) 4L80E 4L85E Transmission Stator Support Bushing Front WIDE

by Sonnax
SKU S34036B
$2.61 - $2.61
$2.61
$2.61 - $2.61
$2.61
Availability:
in stock, ready to be shipped

Delivery time

You will receive your package in 2–5 business days within the contiguous U.S.

Brand: Sonnax

Type: Bushing

Interchange Part Number: S34036B

Manufacturer Warranty: Yes

Fitment Type: Direct Replacement

Items Included: Front Stator Support Bushing

Manufacturer Part Number: 34016-W

Universal Fitment: Yes

Vintage Part: No

Performance Part: Yes

4L80-E, 4L85-E Pump

Stator Support Bushing (1 PC)
Part No. 34016-W

Package Quantity: 1 PC

GM 4L80-E and 4L85-E units may display no converter lockup or codes 68, 39, 1870 or P0741. Imbalance of torque converter clutch apply oil through the front stator support bushing contributes to this complaint. A journal clearance of .002" or more will generate sufficient leakage to cause lockup clutch slippage, causing the transmission to stay in third gear. Sonnax front stator support bushing 34016-W is designed to reduce leakage by minimizing journal clearance and also increasing journal length.

Due to stator shaft variations, in some cases it may be necessary to hone the bushing I.D. slightly for proper fit. See instructions for details.

  • Bushing Style: Precision
  • Material: Steel-backed bimetal
  • Width: 0.675"
  • Shaft Dia.: 1.123"
  • Housing Bore: 1.244"
Symptoms:
  • TCC slip codes
  • No lockup
  • Overheated fluid
  • No Overdrive

Cause:

TCC apply oil leaks past the front stator support bushing.

Correction:

This wide front stator support bushing fills the entire stator support shaft bore.
