Per the awesome folks at DNJ Components:
Since its early production in 1999, the RFE platform has been plagued
with many issues. Some of the biggest problems have been premature
clutch failure and valve body wear. The premature clutch failure can be
isolated to hydraulic cross leaks and warped valve bodies. Approximately
80-90% of those cross leaks have been found in the OE channel plate
casting.
If you look closely at the stock casting with a straight edge, you
will notice that there is some severe flexing and warpage. Looking at
how the valve body is fastened to the transmission and being that there
are limited contact surfaces it’s no wonder we see so many problems. For
example, fourth gear clutch failure, premature valve body bores worn,
and defective valve lands.
We have noticed over the years that in many cases the same vehicle
would require another new valve body after only 60-70,000 miles. So, we
decided that the best way to fix this issue was to eliminate channel
plate flexing.

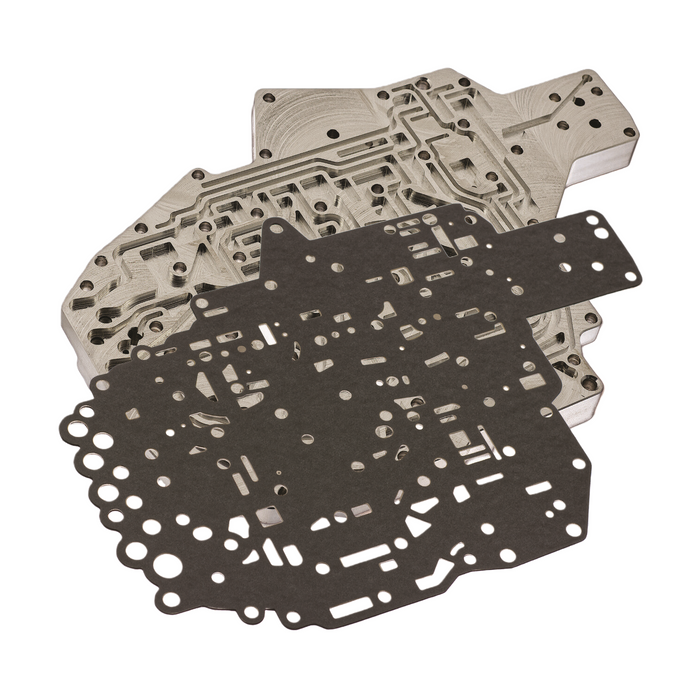

We developed a new plate made of billet aluminum that has shallow
hydraulic circuits. It is made from a solid 1” piece of material.
Machining away only what is necessary to ensure no warpage and a very
solid foundation to bolt the valve body back to. Also, we have slightly
moved some passages and eliminated those not necessary in hopes of
stopping separator plate chafing and valve body breakage and cracking
from high line pressure in performance applications.
With our new billet channel plate, the end user is able to use the
stock hardware. They can also choose whether they want to use a bonded
separator plate or a good used stock one. The customer can also apply
stock or performance tuning with higher line pressure with our D-CF2
plate. We believe that with our plate there will be no more need in ever
buying another valve body again.
We have done extensive testing to our plate to ensure zero warping.
For an understanding of the durability we tested the strength of the
plate. We put the stock plate on a press that has a pressure gauge. With
the edges supported just like factory, we then put a 1.000-inch round
bar in the center. At 300lbs of pressure the stock plate warped to .168
and then cracked. We then did the same to our plate. At 1 ton it did not
move. We then went to 2 tons with barely any movement. Flex was .021.
Then we went to 5 tons and it was .047. So, we decided that we would
give it 10 tons…. It flexed to .160 and out of fear we stopped. It
didn’t return to zero, but it did however recover to .056
RevMax Separator Plate 68RFE-303:
Heavy duty valve body separator plate by RevMax is 2.5 times thicker than OEM!
This bonded plate will allow the user to run up to 250psi of pressure without any pump modifications!
Fits the 5-checkball style valve bodies (Gray solenoid pack connector)
