Brand: SONNAX

Interchange Part Number: S36064H

Items Included: 1-piece Case Bushing

Manufacturer Part Number: 36008B

Universal Fitment: Yes

Performance Part: Yes

C6, E4OD

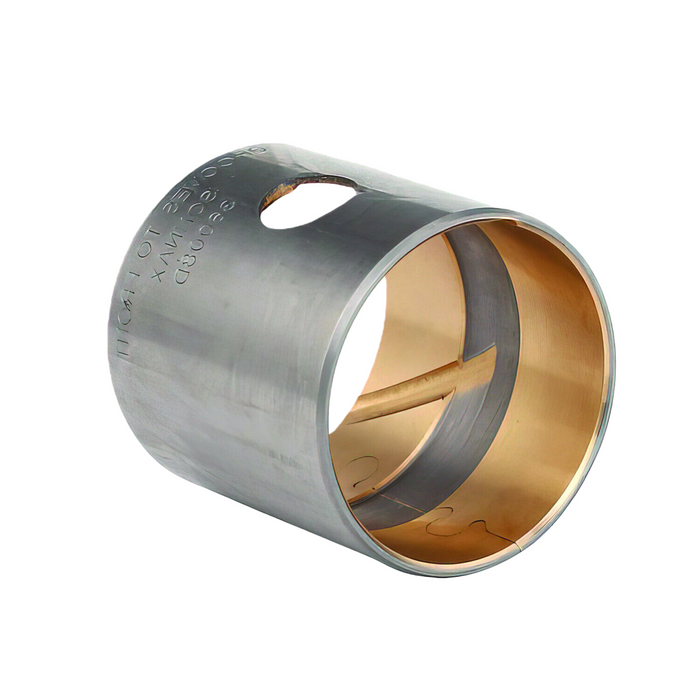

Rear Case Bushing (1 Piece)
Part No. 36008B

Fits '89-'94 units. Early-style, three grooves to front, no grooves to back.

Package Quantity: 1

    Tooling:
  • T36008A
The OE rear case bushings in the Ford E4OD and C6 transmissions tend to wear out prematurely. Bushing failure may be due to lack of lubrication, excessive journal clearance, or too much load for a given bearing area. Replace the two OE bushings with Sonnax rear case bushing 36008B or 36008D using the Sonnax installation tool T36008A to draw the replacement bushing into place. Both one-piece replacement bushings are an improvement over the OE two-bushing design because of their increased bearing surface area and superior lubrication characteristics.

On some C6 applications there may be a ridge of unmachined material which separate the two OE bushings. This area must be honed down to allow installation

  • Bushing Style: Precision
  • Material: Steel-backed bimetal
  • Width: 1.620"
  • Shaft Dia.: 1.470"
  • Housing Bore: 1.593"

Symptoms:

  • Premature wear & bushing failure
  • Inadequate lubrication

Cause:

Lack of lubrication or too much load for the bearing area.

Correction:

This one-piece, standard size rear case bushing installation system can replace a worn-out bushing and save expensive cases.
